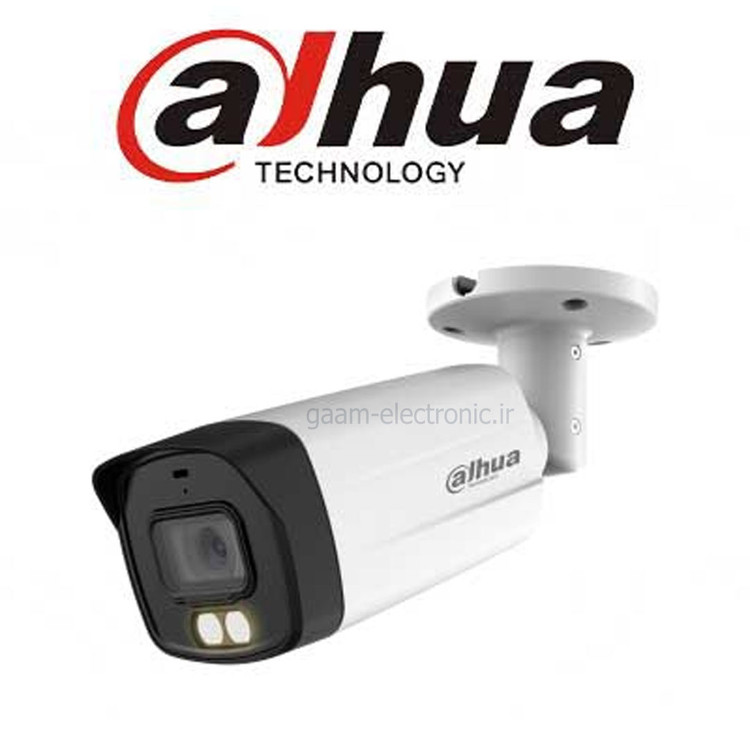

دوربین شبکه2مگ داهوا DH-HAC-HFW1239TLMP-IL-A
Product Selector
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
2 MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.0005 lux@F1.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>65 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
40 m (131.23 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
4 (Multi-core light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.6 mm; 2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: H: 101.8°; V: 54.4°; D: 122.1° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
BLC; HLC; WDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
130 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto;Area white balance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Mode |
Smart IR&WL; WL Mode; IR Mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pick-up Distance |
8 m (26.25 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in Mic |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC ± 30% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max 7 W (12 VDC, LED on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal front cover + plastic rear barrel + metal bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.31 kg (0.68 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.46 kg (1.01 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HAC-HFW1239TLM-IL-A
2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
> * The parameters and datasheets below can only be applied to1239-IL-S3 series.
> * In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
> Smart Dual Light
> Max. 30 fps@1080p
> Smart Light+
> Smart Area Lighting
> 40 m illumination distance
> Super Adapt, 130 dB true WDR, 3D NR
> Built-in Mic
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> IP67, 12 VDC
![]()
![]()
![]()
![]()
![]()
![]()
